Oracle EFTLink Integration
Oracle is a provider of point-of-sale (POS) software such as Xstore and Retail-J. EFTLink is an Oracle component used to connect payment terminals to Oracle POS software.
The Oracle EFTLink enables payment terminals to connect to Oracle POS systems. This provides a seamless shopping experience for customers, a great operator experience, and seamless reconciliation.
Architecture Overview

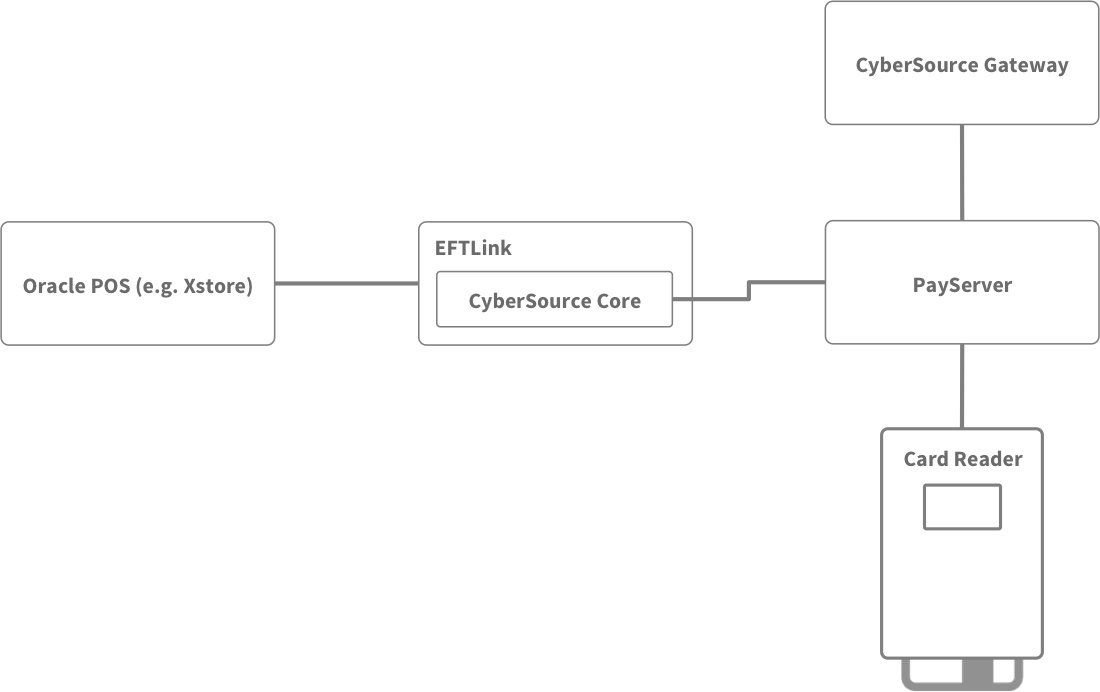

The diagram below shows a general overview of the architecture, which includes these components:
- Oracle POS: An EFTLink-compatible point-of-sale system from Oracle such as Xstore.
- EFTLink: Oracle's component to connect point-of-sale system to payment terminals.
- Cybersource Core: The EFTLink Module that connects EFTLink to the PayServer.
- PayServer: Component (Windows Service) that manages the connectivity to the card reader and the Gateway
- Card Reader: Any card reader (payment terminal) that is supported by the PayServer.
- Cybersource Gateway: Payment Processing Gateway Terminal Management System.
Features
The Oracle EFTLink Integration has the following capabilities:
- Payments
- Reversals
- Card Not Present Refunds
- Combined EFT/VAT receipts
- PED Pooling
Prerequisites
To run this integration, you must run:
- Oracle EFTLink 15 and above
- JDK 1.7 and above
The POS versions that has been tested is :
- Oracle Xstore 16.0.0.1
